Model C
- Format
- 16mm
- Introduced
- 1930
- Original archive
- View preserved page ↗
Tap to enlarge

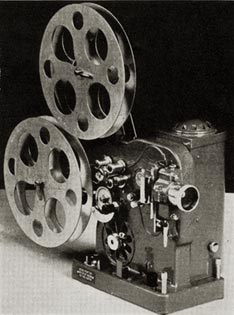

Specifications of the Bolex Model C projector for 16mm film.
At a glance
- Construction
- Grey enamel finish
- Reel Capacity
- Reel arms accommodate 400 ft reels.
- Threading
- Manual threading and loop forming of film.
- Power
- Runs on 110v AC or DC power supply.
- Lens
- Interchangeable lenses
- Speed
- 16 frames per second; Reverse and still projection; Rapid motor rewind.
Specifications in detail
- Lamp
- 250w or 400w lamp; Side located lamp housing reflects light at a 90 degree angle and through the lens.
- Other Features
- Direct draft ventilation and cooling of lamp; Adjustable base with tilting screws for proper alignment of projected image;
