Multimatic
- Introduced
- 1969
- Original archive
- View preserved page ↗
3 photographs — swipe, or tap to enlarge

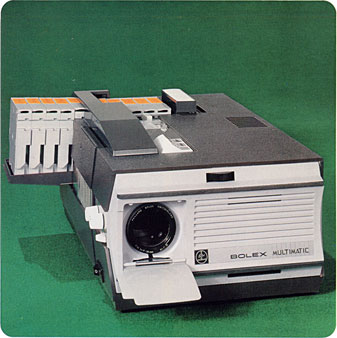

Specifications of the Paillard Bolex cartridge loading Multimatic movie projector for Super 8 film
At a glance
- Overall Dimensions
- 15" x 9 1/4" x 6 1/2"
- Weight
- (With lens) 20 lbs.
- Power
- Multiple versions: 1) 120 V, 60 Hz; 2) 145 V, 50 Hz; 3) Multivoltage
Specifications in detail
- Construction
- Cast aluminum and plastic; Carrying handle; Power cord storage compartment.
- Reel Capacity
- Special retaining cartridges hold 50ft spools of super 8mm film; Chamber holds up to 6 cartridges.
- Threading
- Cartridges are placed into a chamber; Projection starts by simply opening the chamber door. Threading and cartridge change is fully automatic. Cartridges are rewound, and new cartridges can be inserted, while one cartridge is projected.
- Lamp
- 21 V/150 W halogen lamp with dichroic reflector. Modern replacement: EJA 21V 150W
- Lens
- Four interchangeable lenses were available: Bolex Hi-Fi 20mm f/1.3; Bolex Hi-Fi 23mm f/1.1; Bolex Hi-Fi 17-34mm f/1.1; Kern Vario Switar 12-30mm f/1.3
- Variable Speed
- 18 and 24 frames per second, forward or reverse; Slow motion at 6 or 8 frames per second, forward or reverse; Still projection; Rewind.
- Other Features
- Brightness control switch allows lamp illumination to be reduced; Height adjustment with milled knob and levelling; Built-in holder for miniature screen; Zoom, focus and framing controls.
Serial numbers & production years
As documented on this model’s archived page. Look up any serial on the serial lookup page.
| Serial range | Year |
|---|---|
| 100,001 – 102,015 | 1970 |
| 200,001 – 202,839 | 1970 |
| 300,001 – 300,049 | 1970 |
| 102,016 – 105,999 | 1971 |
| 202,840 – 208,858 | 1971 |
| 300,950 – 306,493 | 1971 |
| 208,859 – 211,001 | 1972 |
| 306,494 – 308,000 | 1972 |
